Features:
[Ultra HD 4K Visual]: Supports HDMI 2.0 and standard HDCP 2.3, supports the highest resolution of 4K@60Hz,1080@144Hz, and also supports 1080P@120Hz or lower resolution to make the image display more exquisite and life like.
[Keyboard And Mouse Compatibility]: Supports keyboard and mouse pass-through mode (Semi-DDM USB). Supports more keyboard and mouse functions that are not supported by other KVMs. Supports wired, wireless and gaming K&M with near-zero latency keyboard and mouse switching.
[2.0CH Audio Extractor]: Comes with a 3.5mm audio jack port with an internal DAC chip that allows you to plug in a 3-band 3.5mm headphone device.
[Broad Compatibility]: Supports mirror mode, extended mode and crossover mode, and is also compatible with all laptops and other devices with HDMI ports. It has adaptive EDID for Windows, macOS, Linux, UNIX and other operating systems.

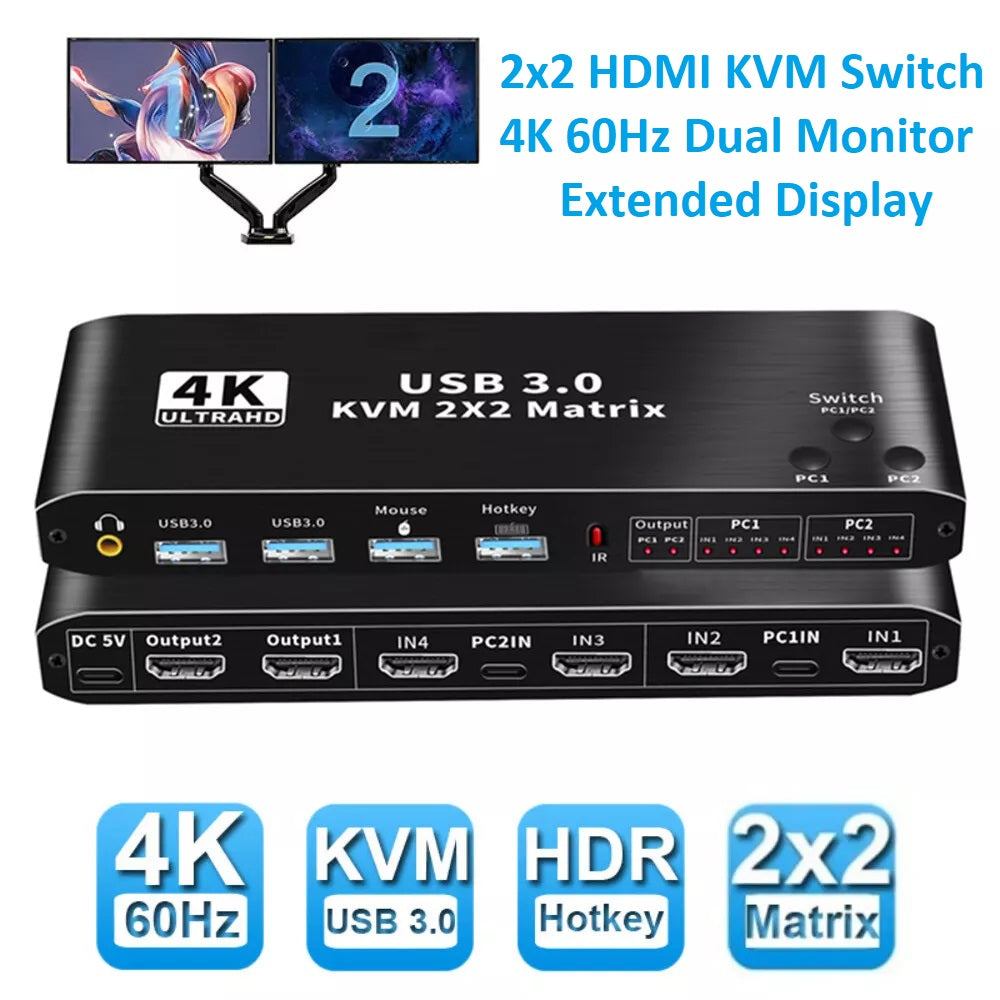

[2 Input 2 Output 4K HDMI Matrix Switch]: Connects 2 HDMI sources to two HDMI displays at the same time. It can easily switch or split 2 HDMI-devices into two HD displays with button assist or remote control to display the same or different images on your screen. Ideal solution for home PC laptop setup, office, school & conference meeting room etc.
Specifications:
• HDMI compatible version: HDMI 2.0b.
• HDMI compatible resolution: 4096 x 2160.
• Support video format: 8/10/12-bit Deep Color.
• Support audio format: For DTS-HD / Dolby-trueHD / DTS / Dolby-AC3 / DSD.
• Maximum bandwidth transmission: 320MHz.
• Maximum transmission rate: 18Gbps.
• Input cable length: (1080p resolution) ≤ 15m, (4K resolution) ≤ 10m AWG26 HDMI compatible standard cable.
• Output cable length: (1080p resolution) ≤ 15m, (4K resolution) ≤ 10m AWG26 HDMI compatible standard cable.
• USB port version: USB 3.0.
• Number of USB ports: 4.
• HDMI input ports: 2.
• HDMI output ports: 2.
• Operating power input: 5V1A.
• Input port type: type-c.
• Product material: metal.
• Product size: 176 x 57 x 21mm (L*W*H).
Package Includes:
1 x HDMI matrix switch.
1 x User manual.
2 x USB cables.
1 x Type-c cable.
1 x Remote control (2 AAA batteries not included).
